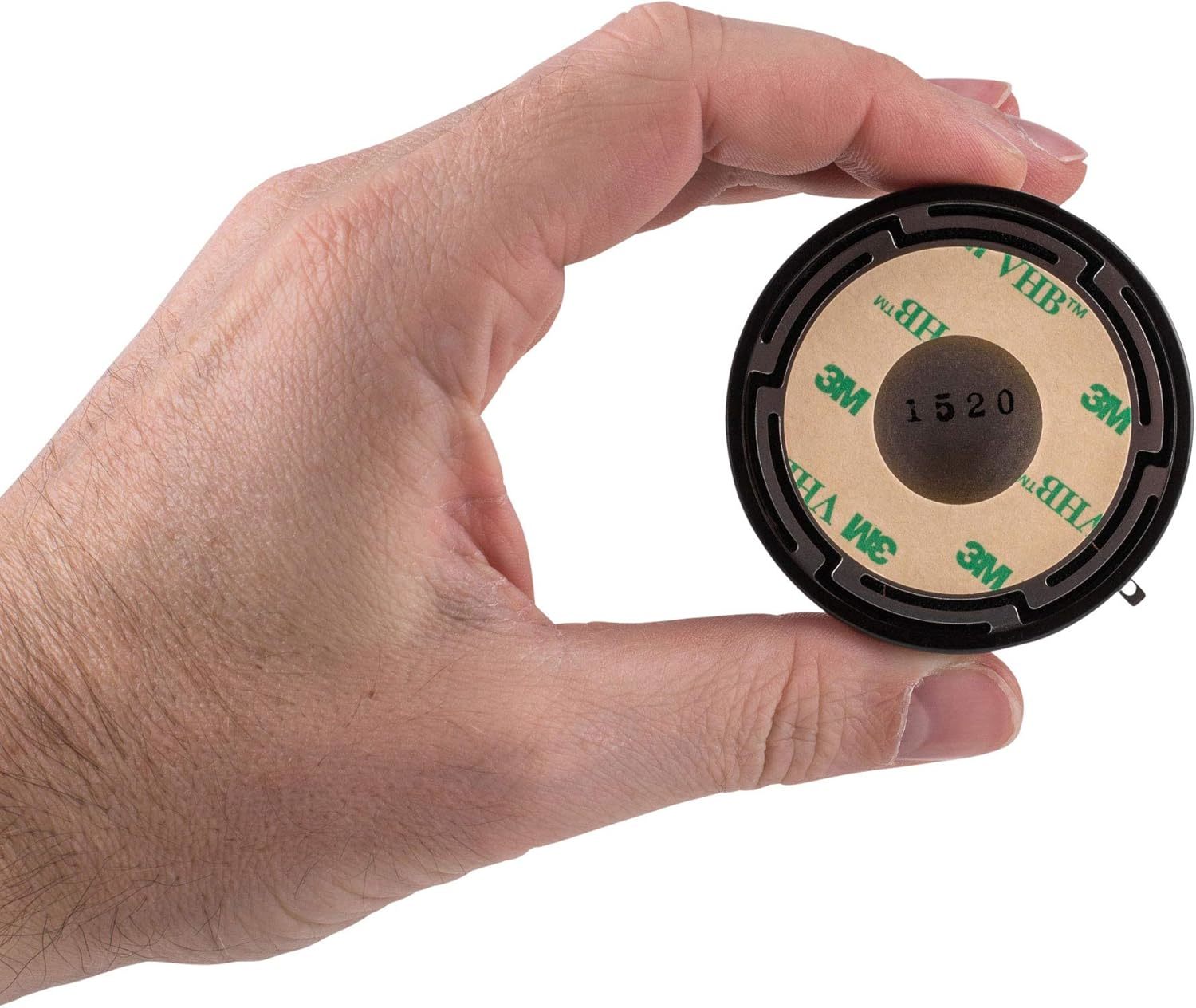

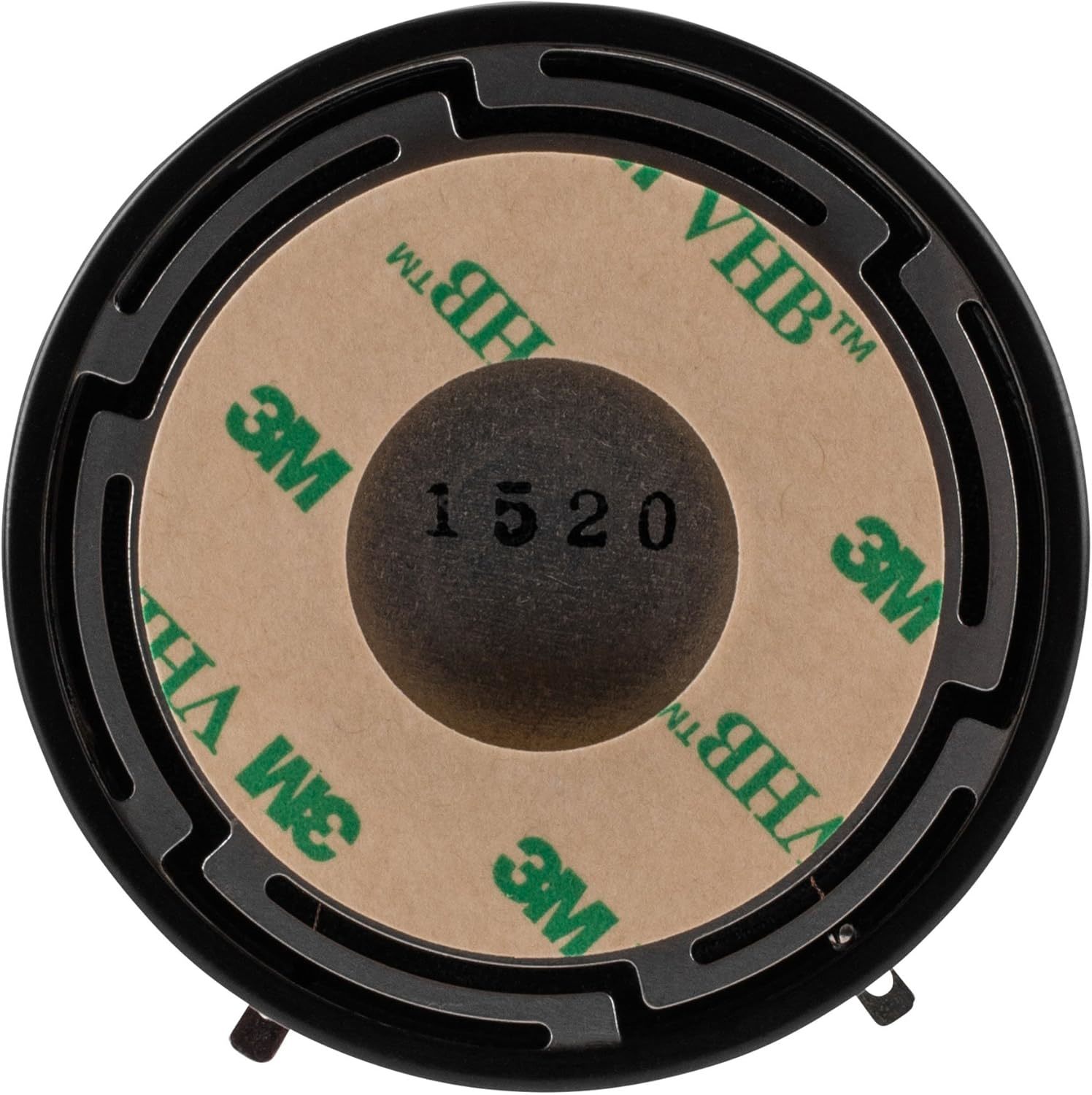

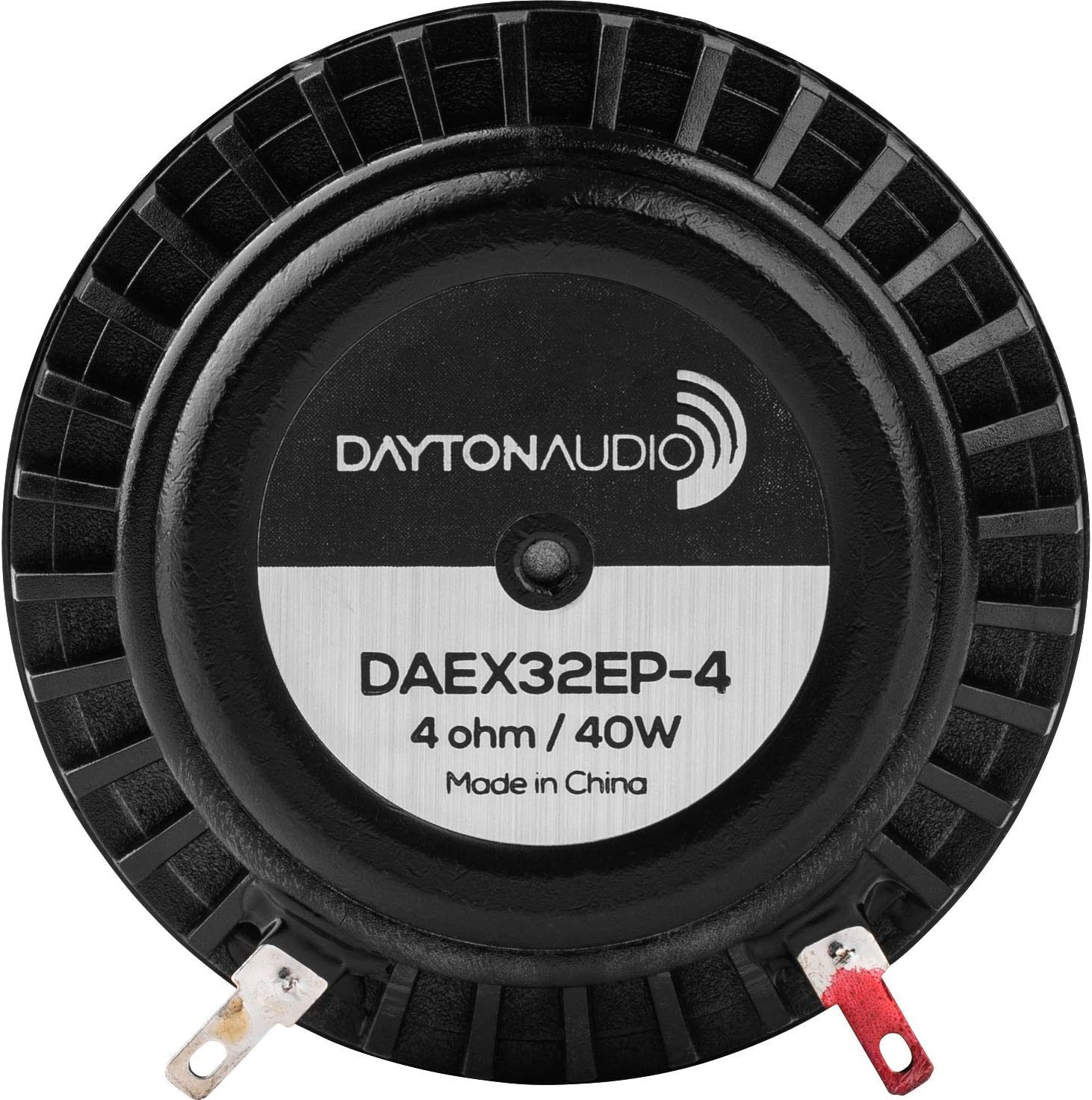

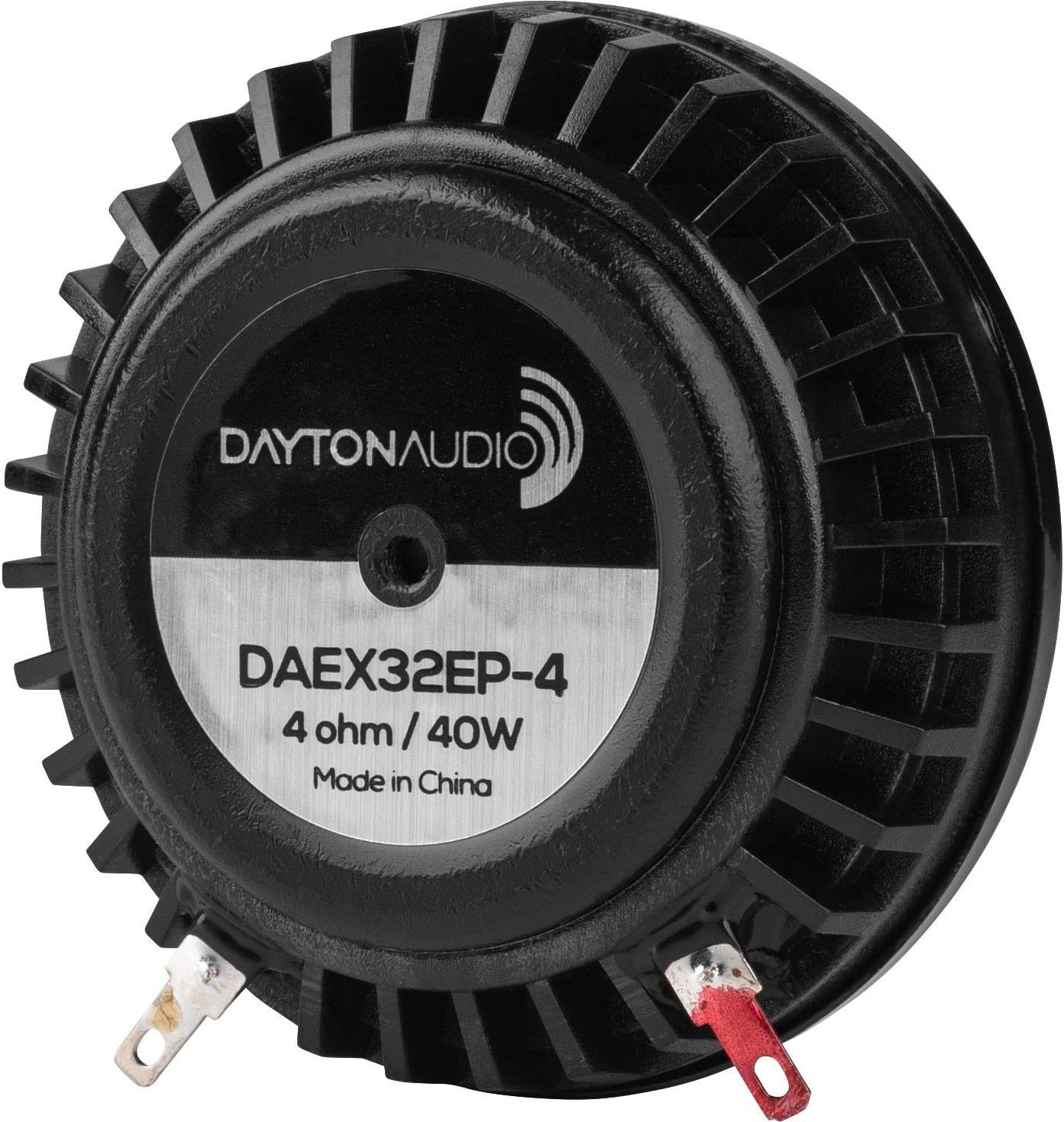

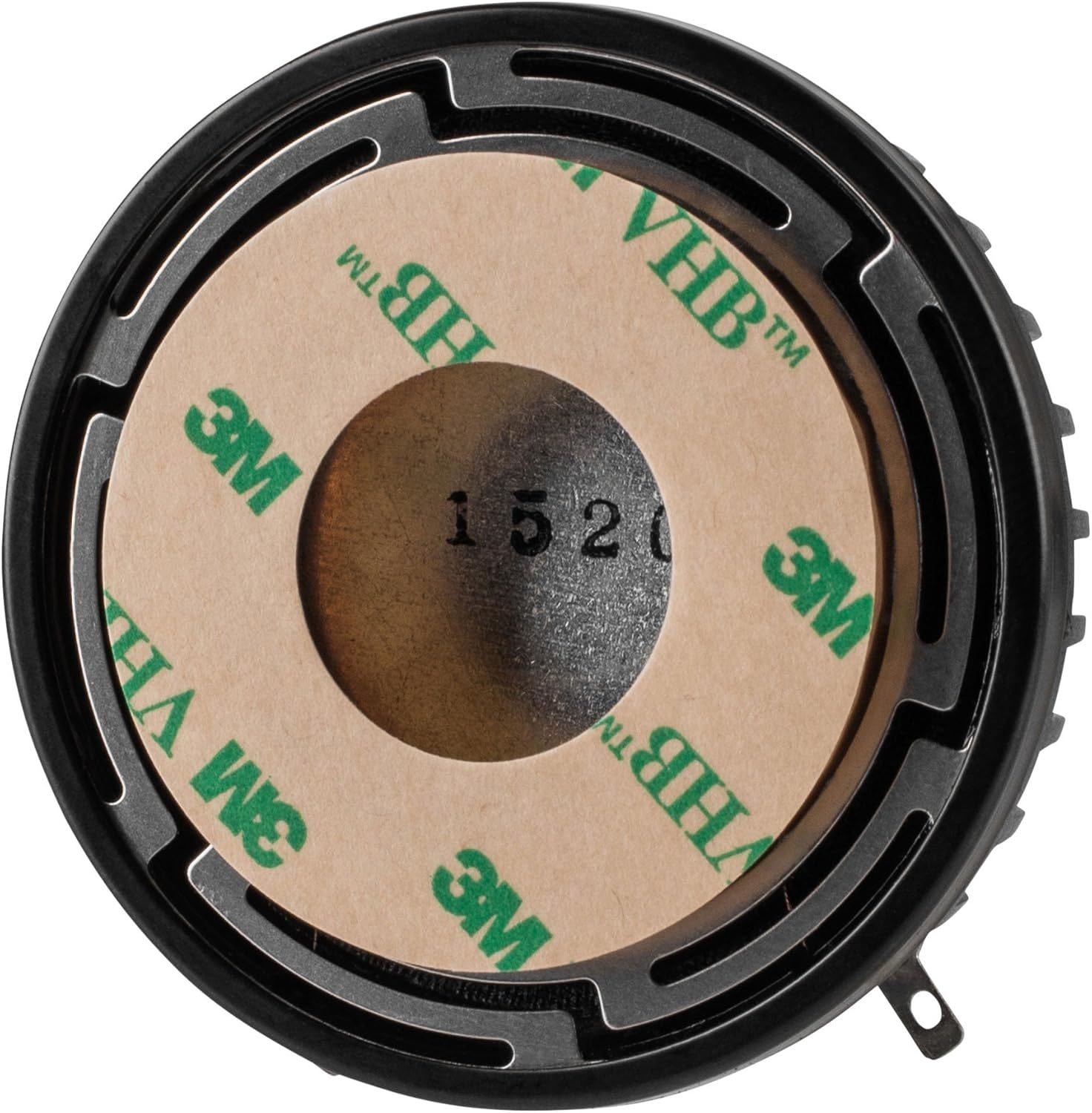

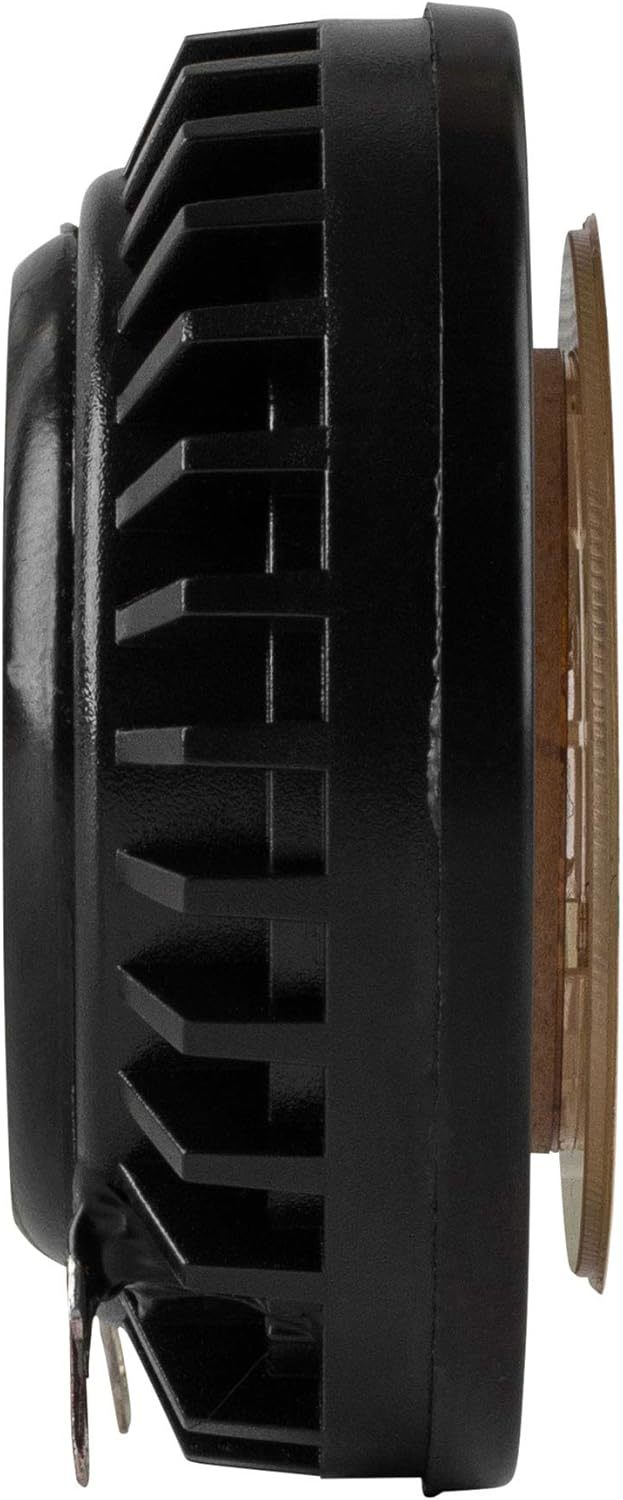

Thruster 32Mm Exciter 40W 4 Ohm From Dayton Audio (Daex32Ep-4). Product Details Quick Overview Turn even large, rigid surfaces into speakers with the Dayton Audio DAEX32EP-4 Thruster exciter! Product Highlights Robust, heavy-duty design with a 32 mm voice coil attached to a steel spider Pre-applied 3M? VHB? adhesive for quick, secure installation Rare-earth neodymium motor and a proprietary two-layer voice coil 4 ohms impedance for use with small, Class D amplifiers 40 watt RMS power handling for high output Product Manuals / Spec Sheets / Downloads Dayton Audio DAEX32EP-4 Specification Sheet AddThis Sharing Buttons Share to FacebookFacebook Share to TwitterTwitter Share to MoreAddThis 4 Product Description Dayton Audios DAEX32EP-4 Thruster exciter is built to turn large, thick, rigid surfaces into speakers. The 32 mm voice coil is attached to a steel spider for maximum restoring force when large amounts of power are applied, making it perfect for large glass panes, furniture, and surfaces that would normally resist the effects of an exciter. A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar sized exciters. In turn, this reduces power requirements and makes it possible to use very small Class D audio amplifiers, without sacrificing total output. To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, 3M VHB (Very High Bond) adhesive is pre-applied to the main body ... just peel and stick! Two male spade quick-disconnect terminals are built onto the main body for quick electrical connection. Note: An exciters frequency response and sensitivity are completely dependent on the exciters designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound. Adhesive dimensions: 41.75 mm (outside diameter), 21.75 (inside diameter) To understand more about exciter technology, here is a link to the Exciters Buyers Guide . Product Details Speaker Series Exciters Model Number DAEX32EP-4 List Price $23.99 Color Black Unit of Measure Each UPC 848791000928 Warranty - Parts 5 Years Warranty - Labor 5 Years Product Shipping Weight (lbs.) 0.3 Speaker Type Exciter Power Handling (RMS) 40 watts Power Handling (max) -- Continuous Program Power -- Impedance 4 ohms Sensitivity -- Frequency Response -- Voice Coil Diameter 32 mm Magnet Weight -- DC Resistance (Re) 3.3 ohms Voice Coil Inductance (Le) 0.21 mH @ 1 kHz Resonant Frequency (Fs) 395 Hz Mechanical Q (Qms) -- Electromagnetic Q (Qes) -- Total Q (Qts) 1.38 Diaphragm Mass Inc. Airload (Mms) 5.4 g Moving Mass Of Diaphragm (Mmd) -- Mechanical Compliance of Suspension (Cms) 0.08 mm/N Surface Area Of Cone (Sd) -- Volume of Displacement (Vd) -- BL Product (BL) 4.2 Tm Compliance Equivalent Volume (Vas) -- Maximum Linear Excursion (Xmax) -- Drivers Mechanical Losses (Rms) -- Entry / Exit Diameter -- Surround Material -- Voice Coil Wire Material -- Voice Coil Former -- Basket/Frame Material -- Magnet Material -- Overall Outside Diameter 60 mm dia. Overall Depth 23 mm Baffle Cutout Diameter -- Mounting Hole Diameter -- Bolt Circle Diameter -- Product Weight -- Robust, heavy-duty design with a 32 mm voice coil attached to a steel spider Pre-applied 3M? VHB? adhesive for quick, secure installation Rare-earth neodymium motor and a proprietary two-layer voice coil 4-ohm impedance for use with small, Class D amplifiers 40 watt RMS power handling for high output Payment We accept PayPal and credit cards via PayPal. Taxes - US We collect sales tax, as required by law. Shipping We make every effort of shipping within 3 business day of payment clearing. The estimated delivery time is 2 - 5 business days from the shipping date. Policies If you do need to return your item, please contact us via email (you will receive an email when your product ships with additional details - Subject: Important information about your purchase). You will then be provided with a return shipping label and packing slip. Pack the item carefully. Include the packing slip, apply the shipping label, and return the item within 30 business days of the date you request a return, or your return will be canceled. Once we receive your order we will inspect the return. Please allow up to 5 business days of receiving the returned item for your refund.
