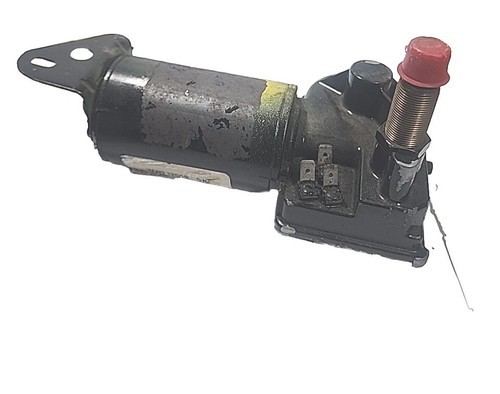

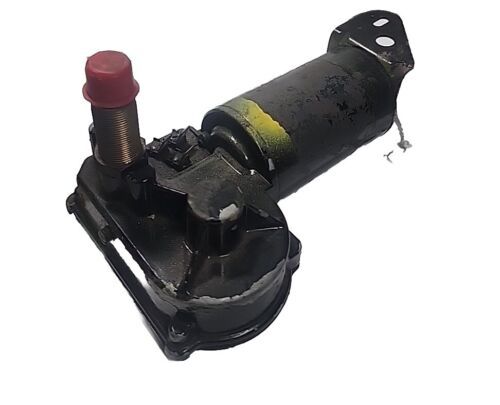

Wexco WWF Wiper Motor Adjustable Angle 1.5 in. Shaft 12V The WWF wiper system provides a totally self-contained oscillating shaft which requires no external linkage. The WWF motor's marine quality sealed casing makes it ideal for all service vehicles. All parts exposed to weather are corrosion resistant. An O ring between the oscillating shaft and its bearing stud prevents water from entering. A worm gear on the armature shaft turns a large molded drive gear. You have a choice of wiper angle sweeps and park orientation. We can adjust these settings for you.. Just choose what you need from above. If you prefer to set it yourself you can easily do this. The WWF motor wipe angle can be adjusted by removing the gear box cover and moving the lever plate pin to the correctly labeled hole. Left or right hand park can be achieved by changing the orientation of the gear plate with regard to position 1 and position 2. PRODUCT SPECIFICATIONS: 12 Volts 1.5" Shaft 110 degree wipe angle (adjustable) Right-hand park (adjustable to left-hand) Low speed: 40rpm High speed: 60rpm Recommended to fuse @ 12 Amps Terminals: 1/4" male bladeWWF motors default at a 110 wipe angle that can be adjusted to one of these 6 different wipe angles: 40 degrees 53 degrees 65 degrees 85 degrees 100 degrees 110 degrees APPLICATIONS: Rear-window, motor homes, RV Off-highway constructions equipment Agricultural equipment Marine Service vehicles
