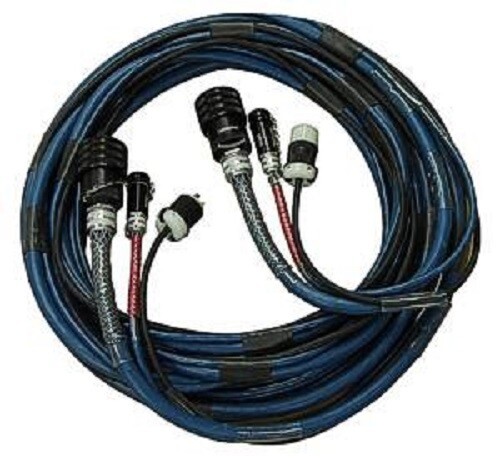

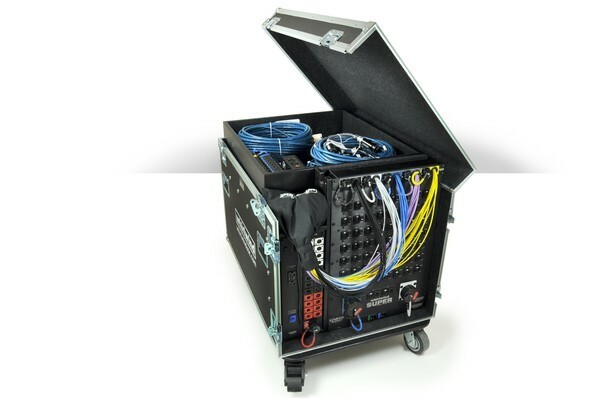

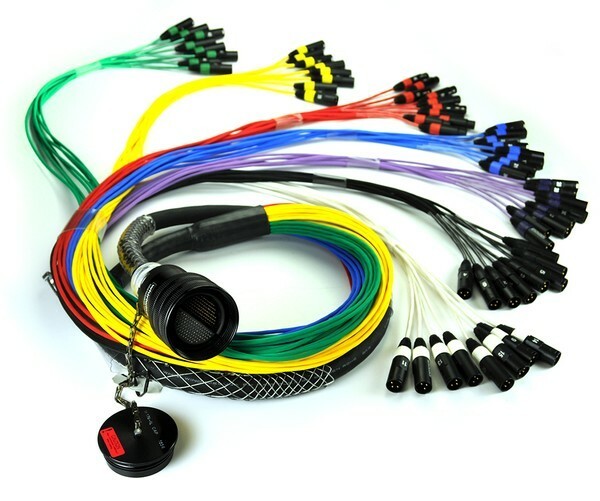

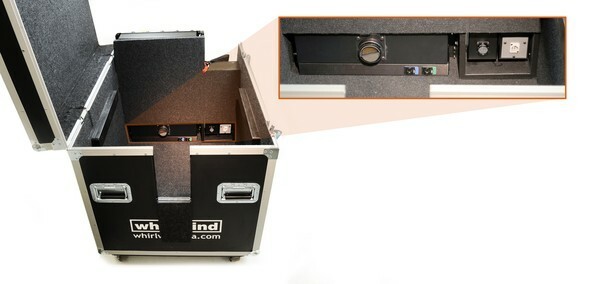

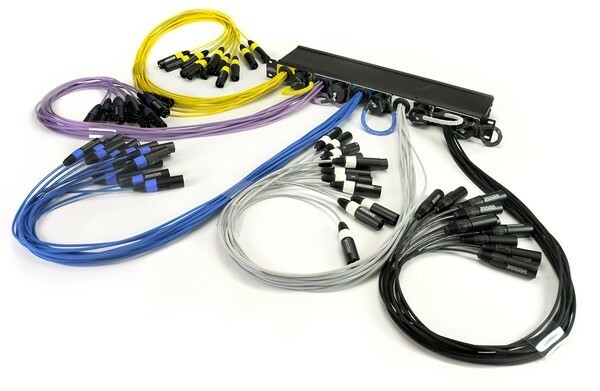

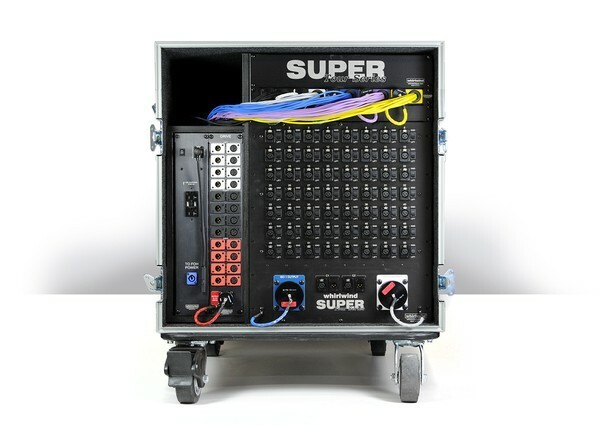

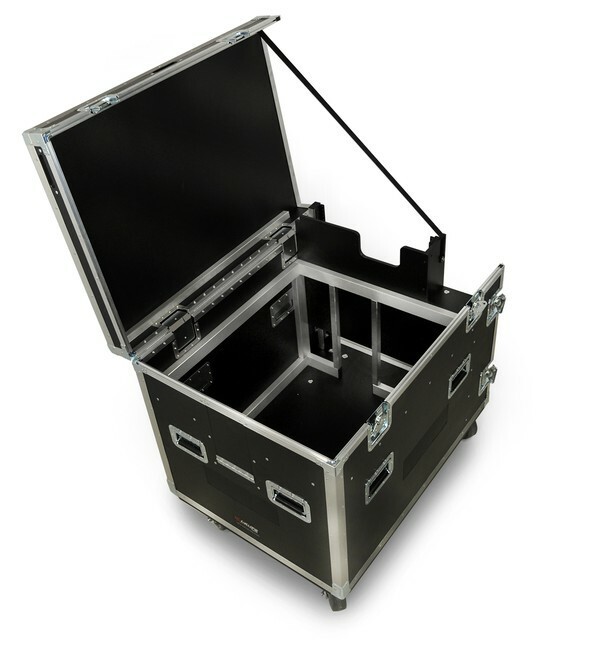

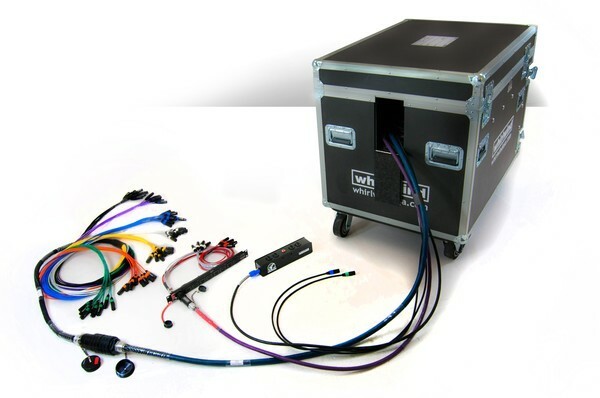

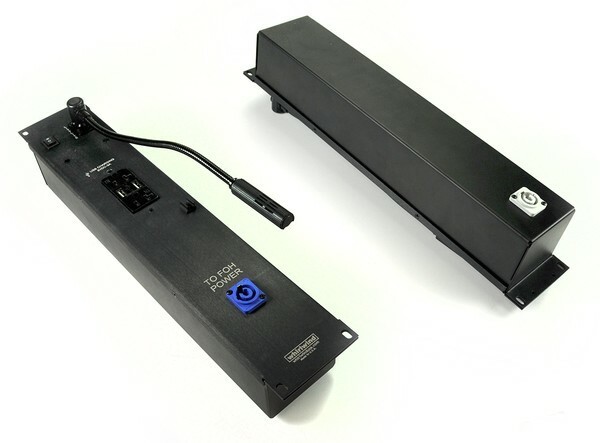

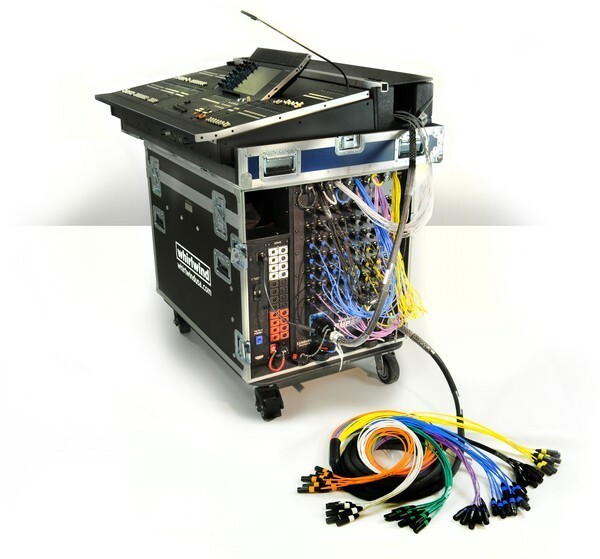

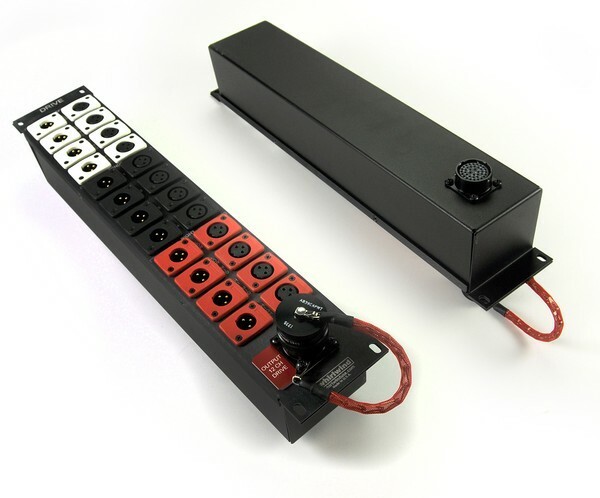

Whirlwind STSR358 Super Tour 58 Ch Concert Splitter System AC,Truck,Fanouts Case 3-way iso split w/TRSP2F transformers Entire system, Components and Case all Made in USA The Whirlwind Super Tour is an entire 58-ch Concert Series snake system, neatly packed into a single road case. Super Tour packages are very popular with hotels, casinos, convention centers and touring sound companies and include all of the cabling you need for FOH, Monitors and setup. Also included is our legendary Patchmaster system, complete with sub snakes. Description All Super Tour splitters feature a W4 direct output on the rear, with the option of one or two isolated W4 outputs on the front panel. The 300' FOH cable consists of a 58-ch W4 cable, 12-ch W1 drive cable and AC cable bundled together. This cable coils neatly behind the splitter and exits through a trap door on the rear of the road case. The charts below outline the components included with each of our Super Tour systems. All Super Tour components are available separately. AC panel, input on front, output on rear Drive panel, input on rear The STSR358 SuperTour 3-way system consists of: 1-STSCSR358 SuperTour Splitter: 58-channel, 3-way ISO w/ Whirlwind TRSP-2F transformers. Direct Out on rear, dual ISO out on front. All outputs on Whirlwind W4 MASS connectors. 1-STSCASE SuperTour Road Case w/ removable lid and front, houses all components and cables. 1-STSACPANEL SuperTour AC power disconnect panel with Littlelite and USB charger port 1-PATCHMASTER60 PatchMaster system w/ 5 W1 multipin inputs to color-coded tails. 1-STSC5812AC300 300' 3-piece main trunk, joined with heavy duty heatshrink, consists of 1 each: · 58 channel W4 to W4 MASS interconnect cable · 300' 12 channel W1 to W1 drive interconnect cable · 300' 12-3 AC power cable w/ Neutrik Powercon connectors 1-FM562XLW4IRP(I)10SS 10' fanout for FOH, 56 inputs, 2 returns 2-FM562XLW4IRP(I)25SS 25' fanouts for split #2 and split #3, 56 inputs, 2 returns 1-STSD12S1 Color-coded Drive Output panel w/ W1 input. 1-STSD12F1 12 channel drive panel for FOH 2-B120NRW1IM50- Color/or BK 12 channel drop boxes w/ 50' hardwired cable to W1 (available with detachable box) 3-B120NRW1IM100 + COLOR 2 channel drop boxes w/ 100' hardwired cable to W1 (available with detachable box) The heavy duty Stage Road Case is 43" Deep, 29" wide and 29" high. Everything fits inside the case and latches shut for easy transport. Everything pictured here is included except the Mixer in Pic #2. Also include which is not pictured but in the description are five B12 drop boxes and W1 snake ( ask for detachable or hardwired ) *****This unit is shipped by Truck Freight Service on a pallet and will deliver to any Venue, or commercial business with a loading dock. If you don't have a loading dock or a freight terminal in your town ( very rural areas) Then you will go pick it up at the nearest terminal. Ships in the Lower 48 states only. Email prior to purchase if you need a lift gate for delivery. *** this unit is non returnable*** Echotone Music LLC is an experienced E-commerce Audio Visual Equipment dealer since 1998. We take pride in selling Pro Audio gear for musicians, sound engineers, production companies and broadcast applications. Shipping --Pro packed shipped USPS, UPS or Freight Service. Contact us pay for 2 day air upgrade on any unit. We are working hard to get your product ( built if needed), processed shipped. Processing times vary, 2-30 days Returns/Refunds- If there is truly a manufacturing defect a return tag will be provided. Otherwise customer pays for return shipping. Returned items must be sealed/unopened to qualify for a full refund. Refunds are for the Item cost only. Gear returned with out all its original packaging, accessories or shows signs of wear, is subject to an additional service fee. This item is now used and it would be unfair to resell to another customer as new. What products can not be returned? - Clearance items, Custom Builds, items identified as non-returnable, discontinued items, used or NOS items, electronic software downloads, demo gear, computers, vacuum tubes, earbuds, harmonicas raw-frame speakers, drumheads, drumsticks, turntable cartridges, fog fluids
