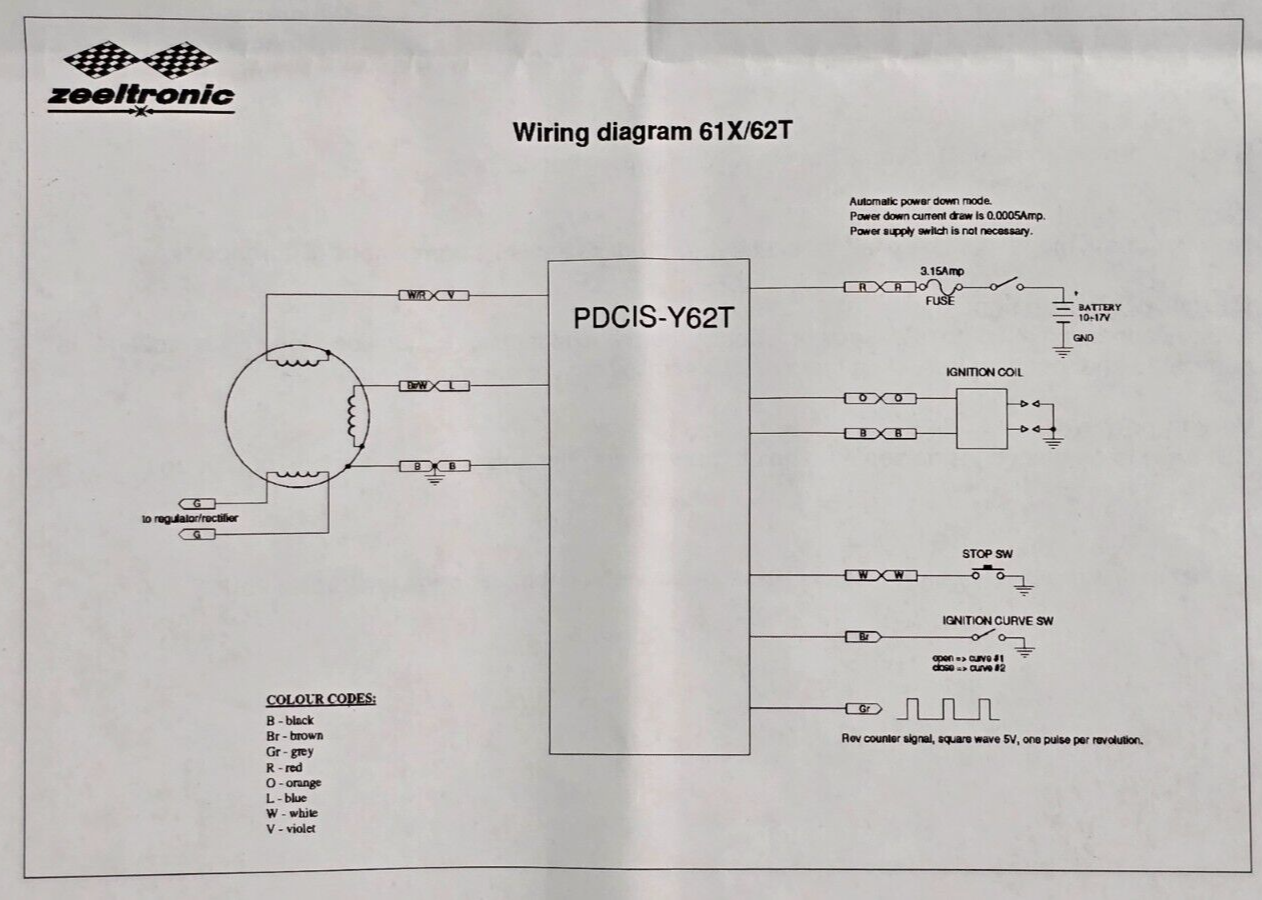

ZEELTRONC PDCIS-Y62T HRS for Yamaha 650cc 701cc 51x 62t Already pre-programmed for Yahmaha Superjet 650 or 701, will work will all other yamaha 650cc and 750cc PWCs. Once you know you Zeel! Fully programable ignition. You will receive exactly what is pictured. Free Shipping via USPS First Class. Ships out same day as payment if paid by 3PM Eastern. 60 No hassle return policy. Simply remove your ignition box and install this one. This will require some splicing or add butt connectors. Zeel Specs: Technical data: - minimum revs 200RPM - maximum revs 20000RPM - minimum supply voltage 9 Volts - maximum supply voltage 17 Volts - recommended power supply from 12 to 15Volts - automatic power down current 0,5 mAmp - max idle current draw 0,15 Amp - max current draw 1,6 Amp - constant spark energy from idle to 14000RPM (single cylinder) 55mJ - spark energy at 20000RPM (single cylinder) 42mJ Circuit is protected against reverse supply voltage (wrong connection). Features: - fast power-up (also starts only with condenser) - full power starting spark energy already at 9 Volts power supply - one isolated input (pickup) - one ignition coil output - external switch for changing ignition map while riding - soft rev limit (three stage rev limit) - rev counter output (1 pulse per revolution, 12 Volt square wave) - easy and fast programming on the field, via hand held programmer - programming while machine running - you can immediately see effects - each curve can be set in 4 to 12 curve points - signal delay compensation - latching stop - automatic power down - instant monitoring of rev's and angle, via LCD(hand held programmer) - fast processing for high accuracy - delays from 1us - timing calculation for every 1 RPM change (1000, 1002, .. , 9805, 9806, ...)
